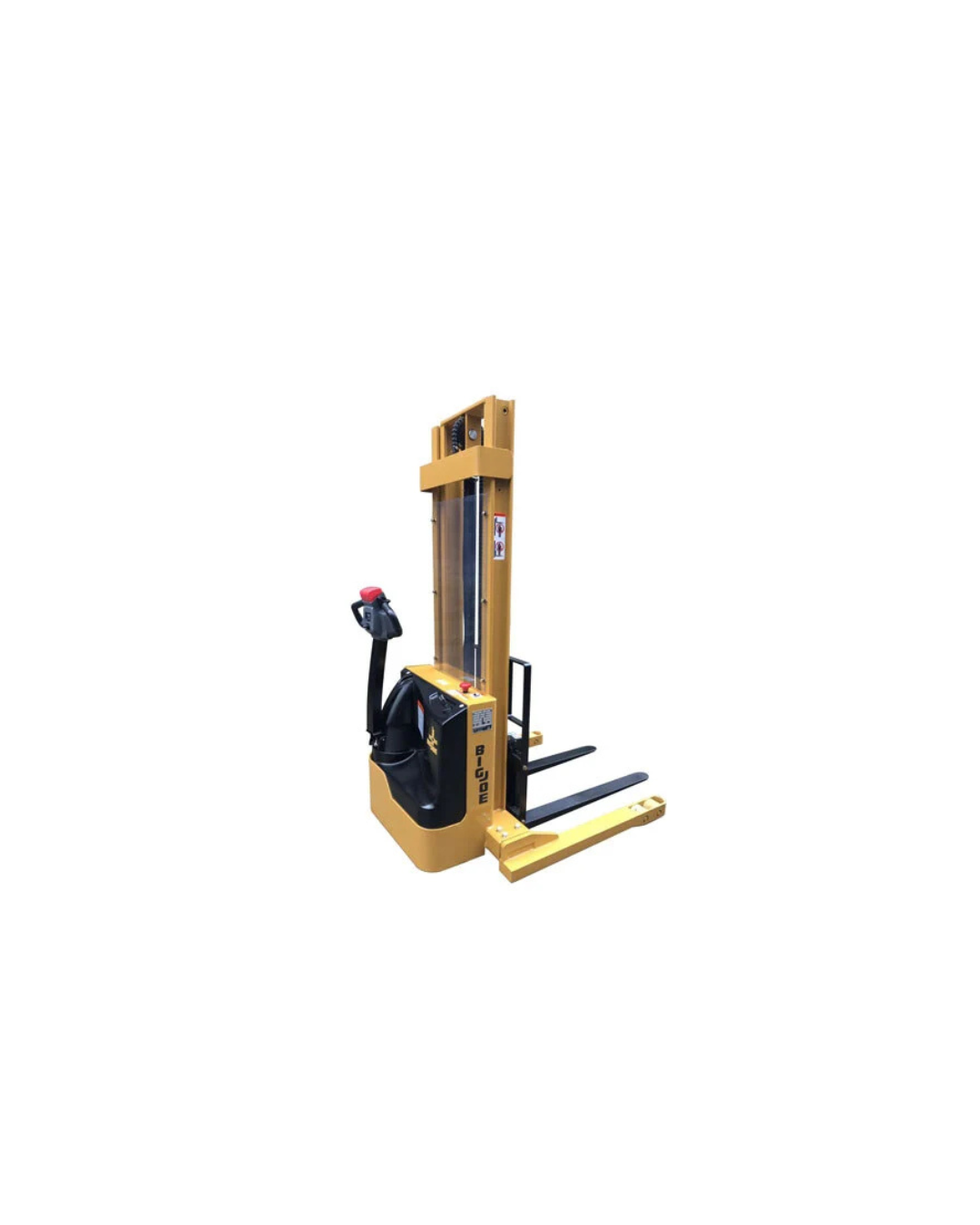

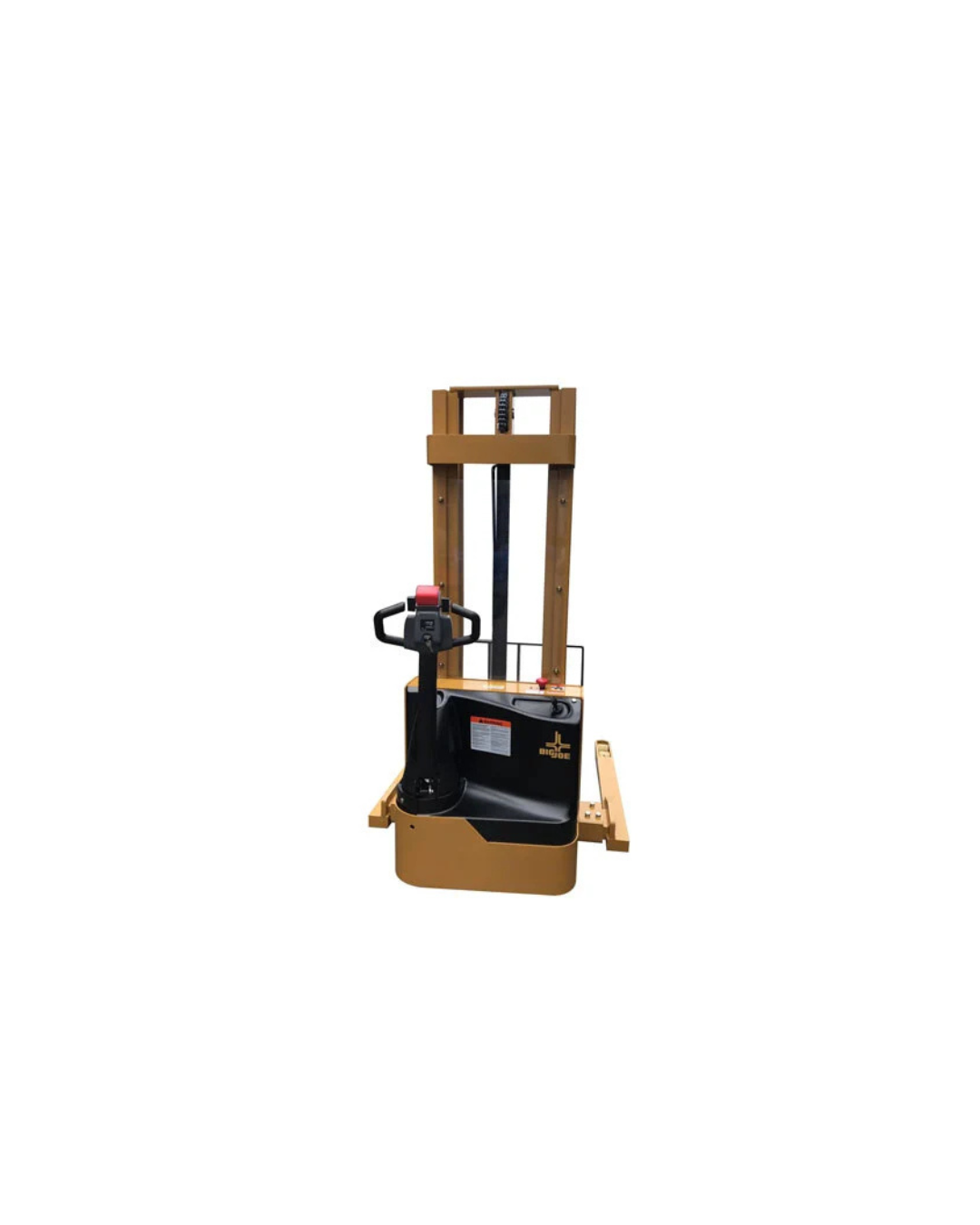

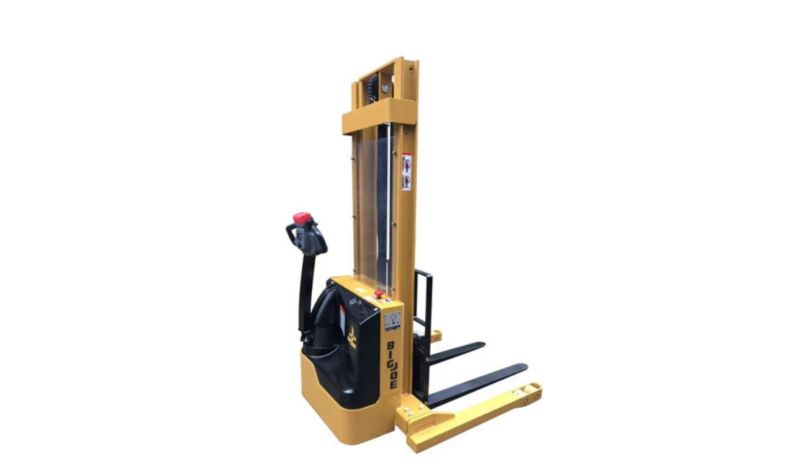

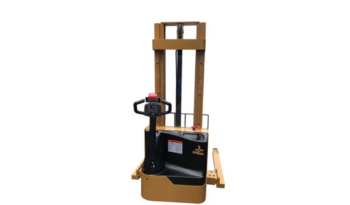

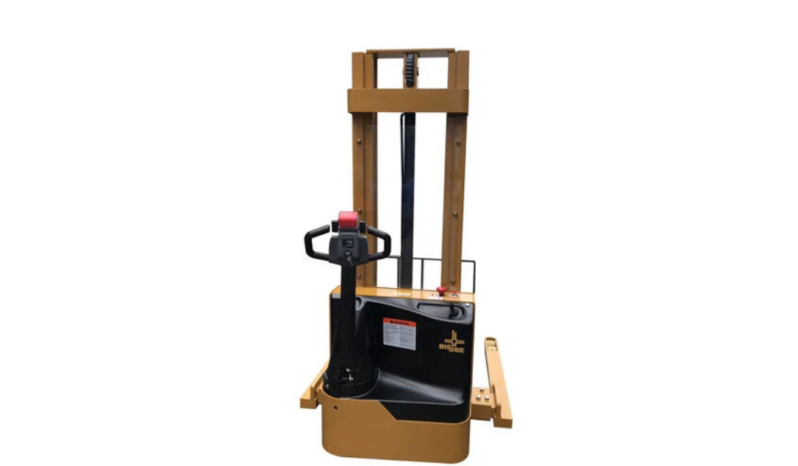

Big Joe S30 Walkie Straddle Stacker

The Big Joe S30 is a robust walkie straddle stacker designed for efficient material handling in various industrial settings. With a 3,000 lb. capacity and a maximum lift height of 128 inches, it offers reliable performance for stacking and transporting pallets.

Applications

Ideal for environments where space is limited, the S30 stacker is perfect for:

Warehouses
Retail stockrooms
Manufacturing facilities
Distribution centers

Its maneuverability makes it suitable for stacking, staging, and transporting pallets in tight areas.

Brands	BIG JOE
Drive	Walkie
Capacity	3,000 lbs
Fuel type	Electric
Model	S30

Financing calculator

Vehicle price ($)

Interest rate (%)

Period (month)

Down Payment ($)

Calculate

Monthly Payment

Total Interest Payment

Total Amount to Pay

FEATURES

Performance

The S30 stacker boasts the following performance specifications:

Capacity: 3,000 lbs. @ 24” load center
Power: 24-volt AC system
Max Lift Height: 128 inches
Fork Dimensions: 42″ x 4″ x 1.5″
Turning Radius: 55.25 inches
Travel Speed: Up to 3.2 mph unloaded, 3.0 mph loaded
Lift Speed: Up to 39 fpm unloaded, 27.5 fpm loaded
Lower Speed: Up to 21.5 fpm unloaded, 25.5 fpm loaded
Battery Capacity: (2) 12V 100AH AGM maintenance-free batteries
Charger: Integral 110V plug-in smart charger

High-Efficiency AC Drive Motor: Delivers smooth and reliable operation.
Adjustable Straddles: Accommodates various pallet sizes for versatile use.
Infinitely Variable Speed Operation: Allows precise control for maneuvering in tight spaces.
Ergonomic Offset Handle: Equipped with lift/lower controls, safety reversing switch, and horn for operator comfort and safety.
Maintenance-Free Batteries: Eliminates the need for regular battery maintenance.
Battery Discharge Indicator & Emergency Power Disconnect: Enhances operational safety and maintenance awareness.
Key Switch Access Control: Limits usage to authorized personnel.
Telescoping Mast with Plexiglass Guard: Provides clear visibility and protection.
Adjustable Forks and Straddle Legs: Forks adjust from 7.8” to 30.5” O.D.; straddle legs adjust from 38″ to 50″ I.D. in 4″ increments.
