PDSR30

Car brochure

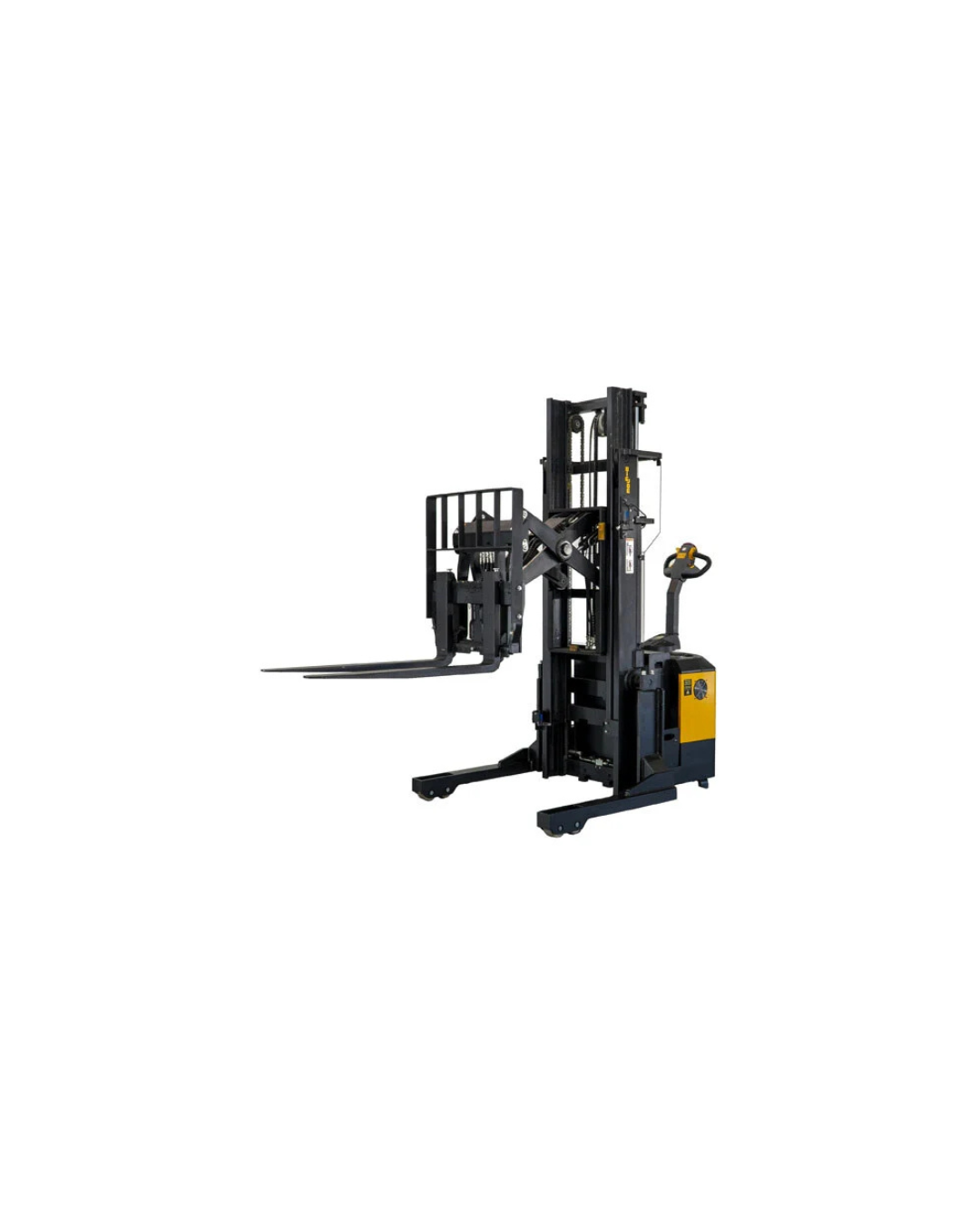

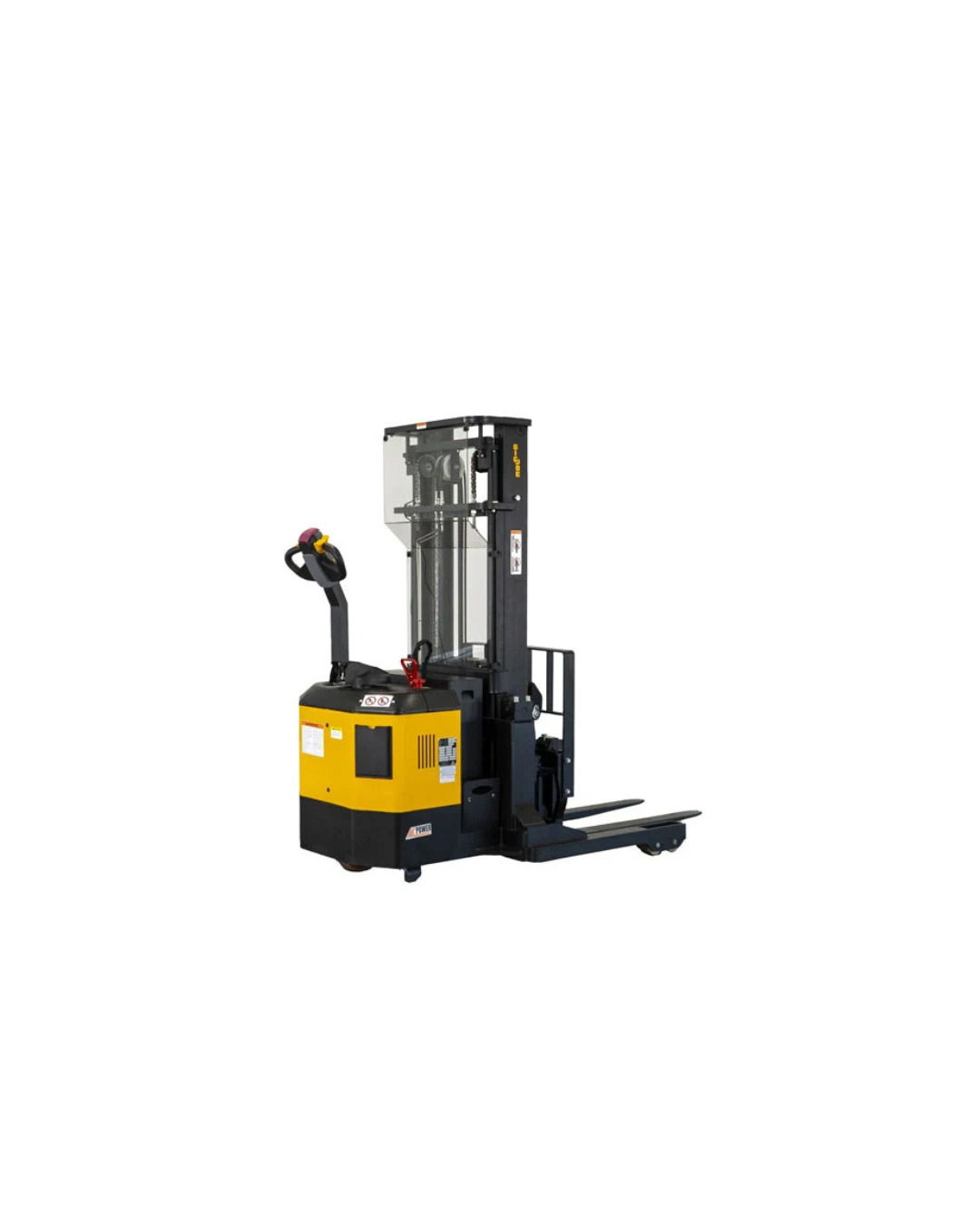

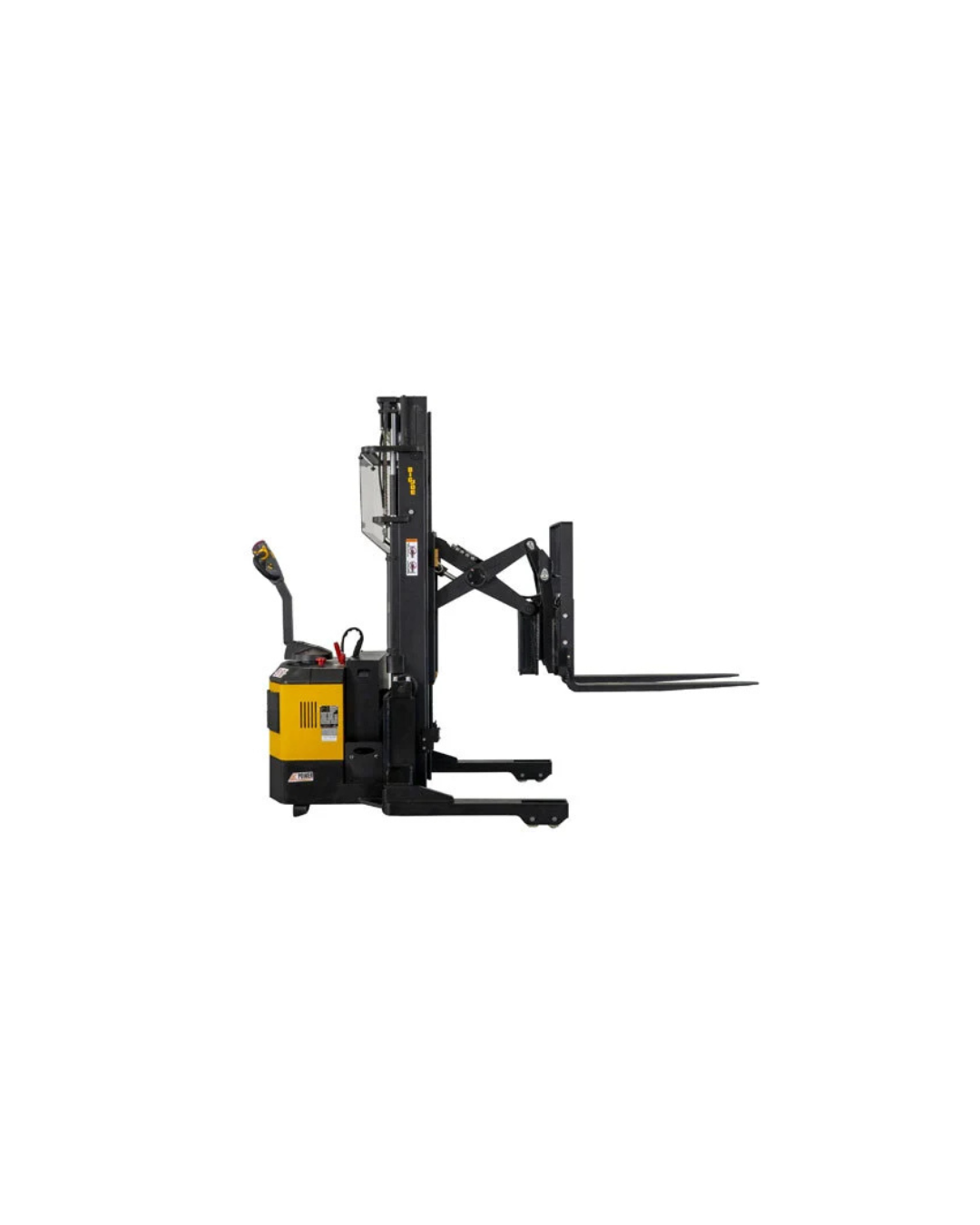

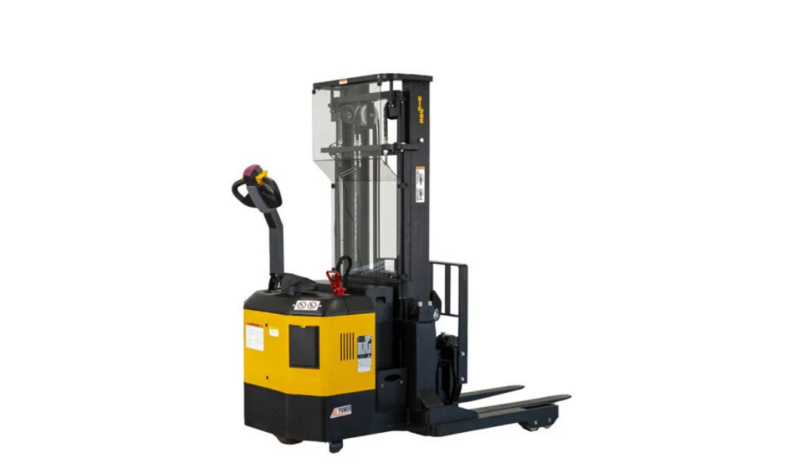

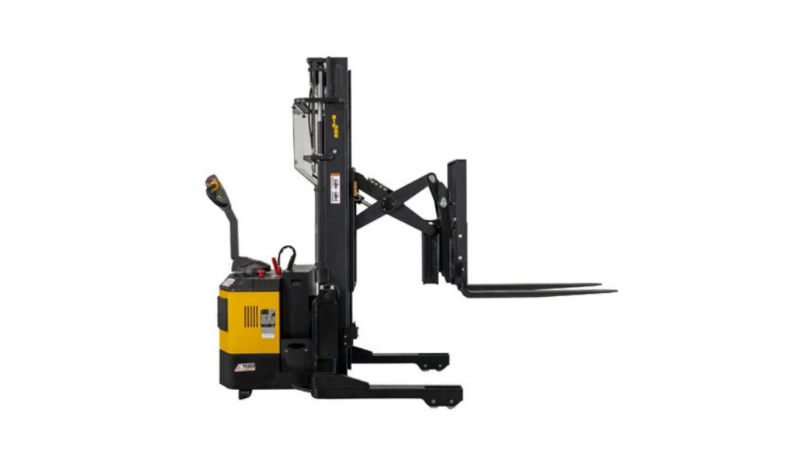

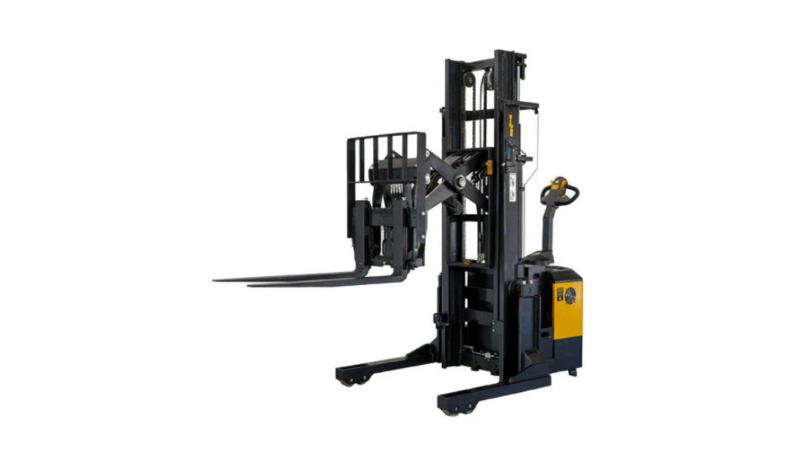

Big Joe PDSR30 Walkie Reach Stacker

The Big Joe PDSR30 is a versatile walkie reach stacker that combines the compact maneuverability of a straddle stacker with the flexibility of a counterbalanced truck. Equipped with a pantograph reach mechanism, it allows operators to handle loads beyond the straddle legs, making it ideal for various material handling applications.

Applications

Designed for environments where space is limited, the PDSR30 is perfect for:

Warehouses
Retail stockrooms
Manufacturing facilities
Distribution centers

Its ability to extend and retract loads enhances its utility in stacking, staging, and transporting pallets in tight areas

Brands	BIG JOE
Drive	Walkie
Capacity	3,000 lbs
Fuel type	Electric
Model	PDSR30

Financing calculator

Vehicle price ($)

Interest rate (%)

Period (month)

Down Payment ($)

Calculate

Monthly Payment

Total Interest Payment

Total Amount to Pay

FEATURES

Performance

The PDSR30 stacker boasts the following performance specifications:

Capacity: 3,000 lbs. @ 24” load center
Power: 24-volt AC electric with ZAPI controller
Max Lift Height: Masts available up to 189 inches
Collapsed Height: Masts available as low as 76.5 inches
Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick
Travel Speed: Programmable with optional handset (0-3.7 mph empty / 0-2.9 mph loaded)
Battery Compartment: 31.6” x 9.06” x OPEN or 31.6″ x 13.0″ x OPEN
Battery Capacity: Industrial battery or 224AH AGM battery pack
Charger: External or 120v integral to battery pack

Key Features

Pantograph Reach Mechanism: Extends forks beyond straddle legs for greater flexibility.
Power Steering: Enhances maneuverability and reduces operator fatigue.
Sideshift and Tilt Functions: Allow precise load positioning.
Proportional Lift, Lower, Extend & Retract: Provides smooth and controlled operation.
Ergonomic Control Handle: Equipped with safety reversing switch and horn for operator safety.
Battery Discharge Indicator with Hour Meter: Monitors battery status and usage.
Key Switch Access Control: Limits usage to authorized personnel.
Straddle Leg Options: Choice of 34″/42″ or 42″/50″ fixed straddle legs to accommodate various pallet sizes
