PDS30-40

Car brochure

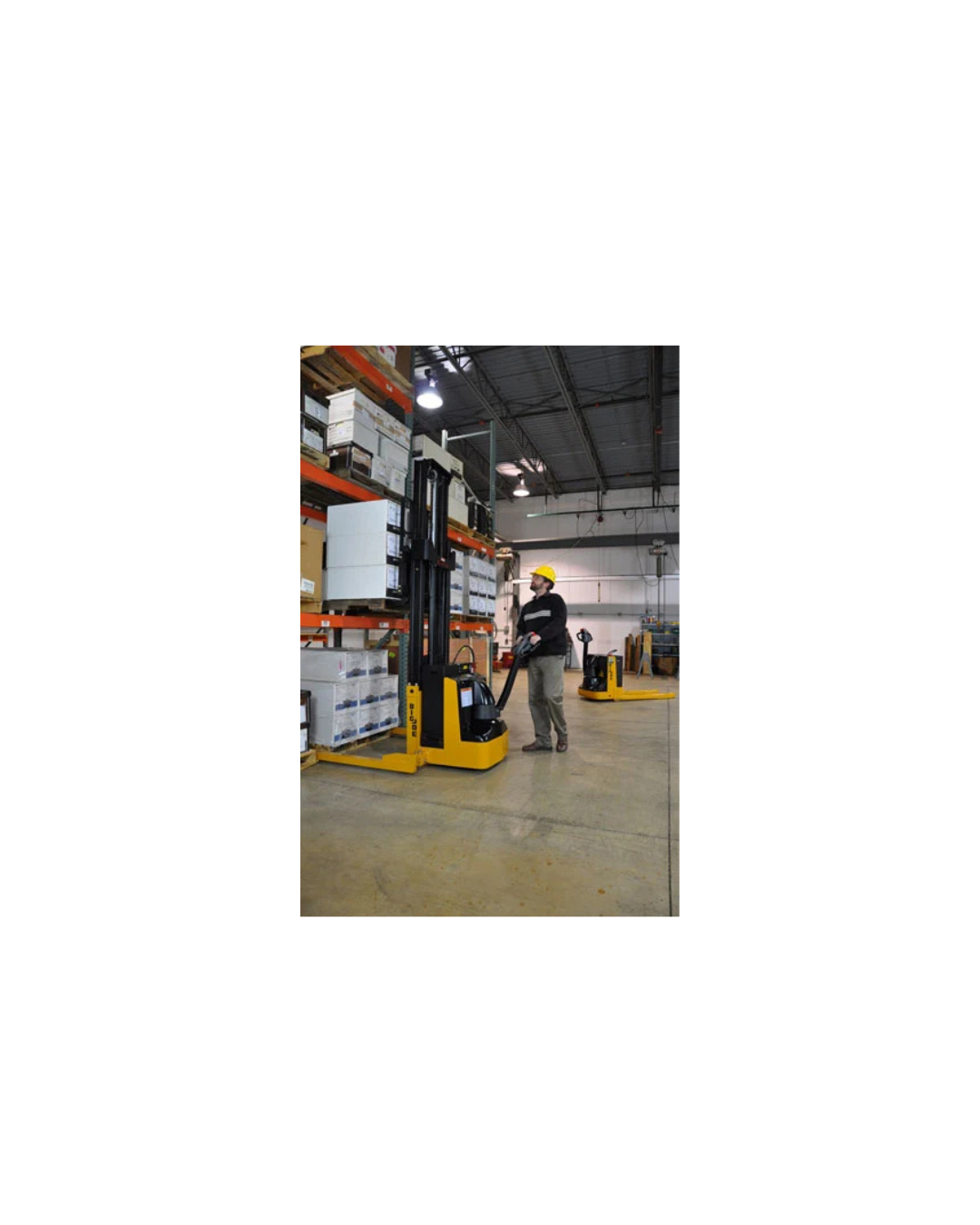

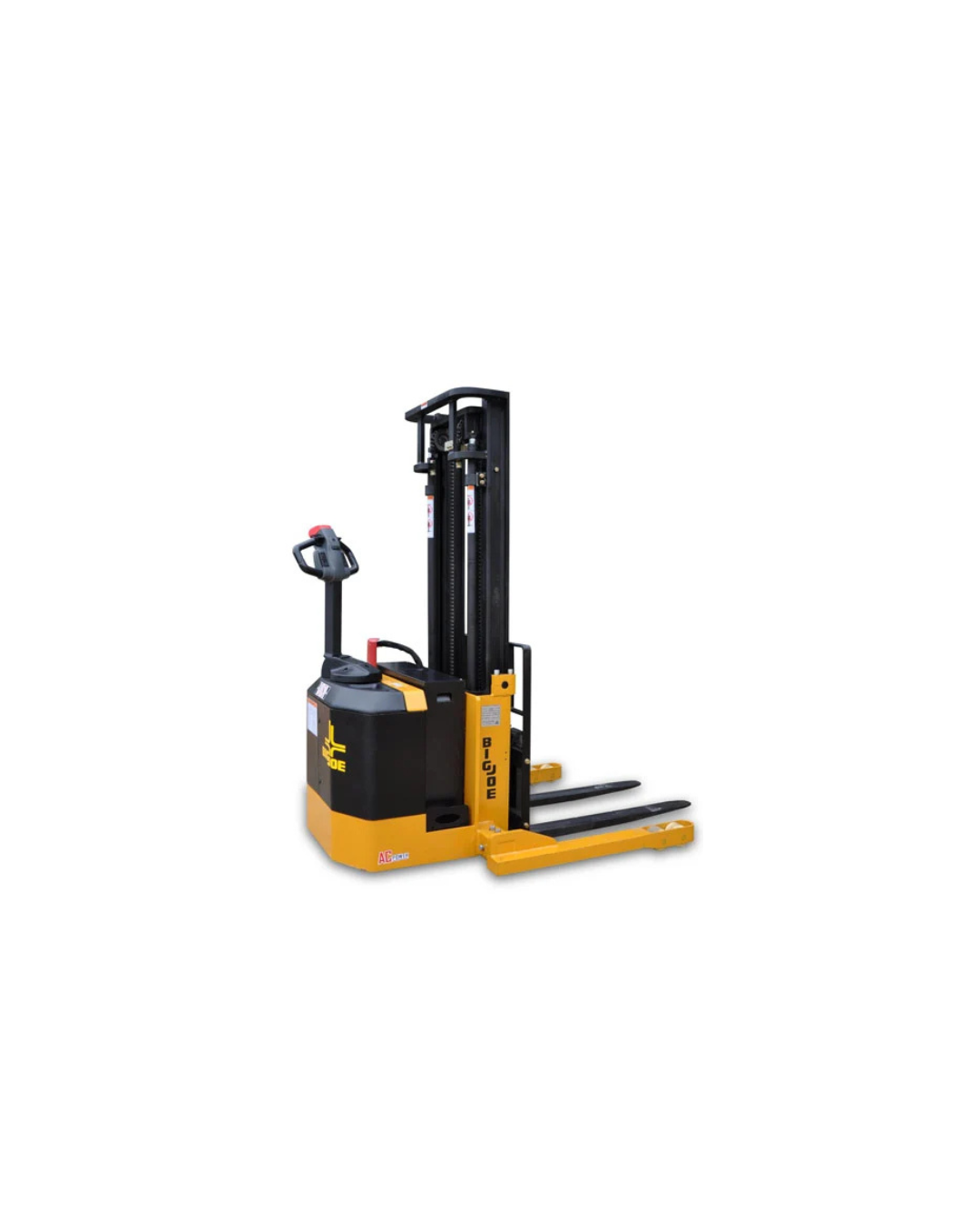

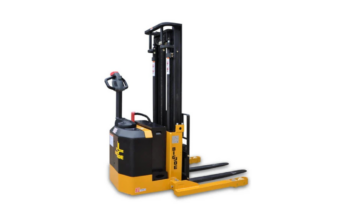

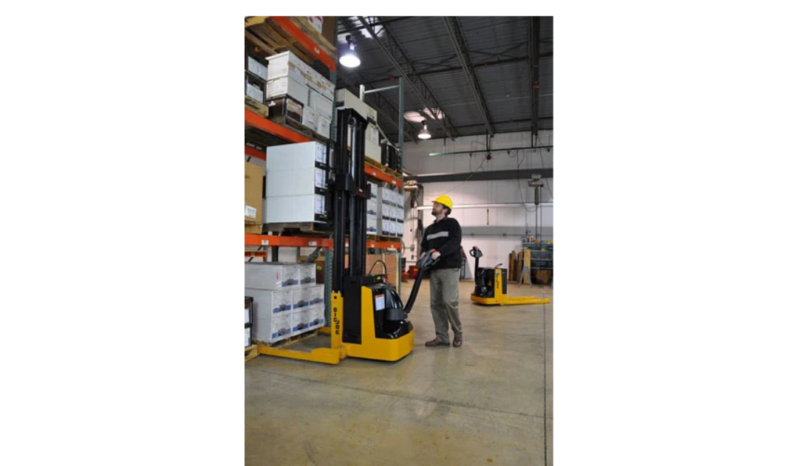

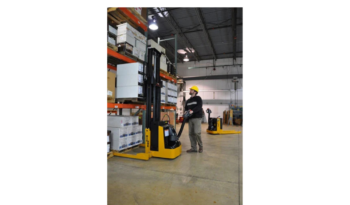

Big Joe PDS30/40 Walkie Straddle Stackers

The Big Joe PDS30 and PDS40 are robust walkie straddle stackers designed for efficient material handling in various industrial settings. With capacities of 3,000 lbs. and 4,000 lbs. respectively, these stackers offer reliable performance for stacking and transporting pallets.

Applications

Ideal for environments where space is limited, the PDS30 and PDS40 stackers are perfect for:

Warehouses
Retail stockrooms
Manufacturing facilities
Distribution centers

Their maneuverability makes them suitable for stacking, staging, and transporting pallets in tight areas.

Brands	BIG JOE
Drive	Walkie
Capacity	3,000 lbs, 4,000 lbs
Fuel type	Electric
Model	PDS30, PDS40

Financing calculator

Vehicle price ($)

Interest rate (%)

Period (month)

Down Payment ($)

Calculate

Monthly Payment

Total Interest Payment

Total Amount to Pay

FEATURES

Performance

The PDS30 and PDS40 stackers boast the following performance specifications:

Capacity: 3,000 lbs. (PDS30) / 4,000 lbs. (PDS40) @ 24” load center
Power: 24-volt AC electric with ZAPI transistor control-inverter
Max Lift Height: Masts available up to 157 inches
Collapsed Height: Masts available as low as 71 inches
Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick
Vehicle Dimensions: 64.5″ Overall Length x 44″ Overall Width
Turning Radius: 60.7 inches
Travel Speed: Programmable with optional handset (0-3.7 mph empty / 0-2.9 mph loaded)
Battery Compartment: 26.37” x 9.06” x OPEN
Battery Capacity: 224AH maintenance-free battery pack
Charger: Integral to pack, 110v plug-in

Key Features

24-Volt ZAPI Transistor Control: Provides smooth and efficient operation.
High Torque AC Drive Motor: Ensures powerful performance for demanding tasks.
Double Reduction Helical ZF GK10 Transmission: Offers durability and reliability.
Shaft Mounted Electromechanical Brake: Enhances safety during operation.
Creep Speed Operation: Allows for precise maneuvering in tight spaces.
Ergonomic Handle: Equipped with a safety reversing switch and horn for operator comfort and safety.
Battery Discharge Indicator with Hour Meter: Provides real-time battery status.
Key Switch Access Control: Limits usage to authorized personnel.
