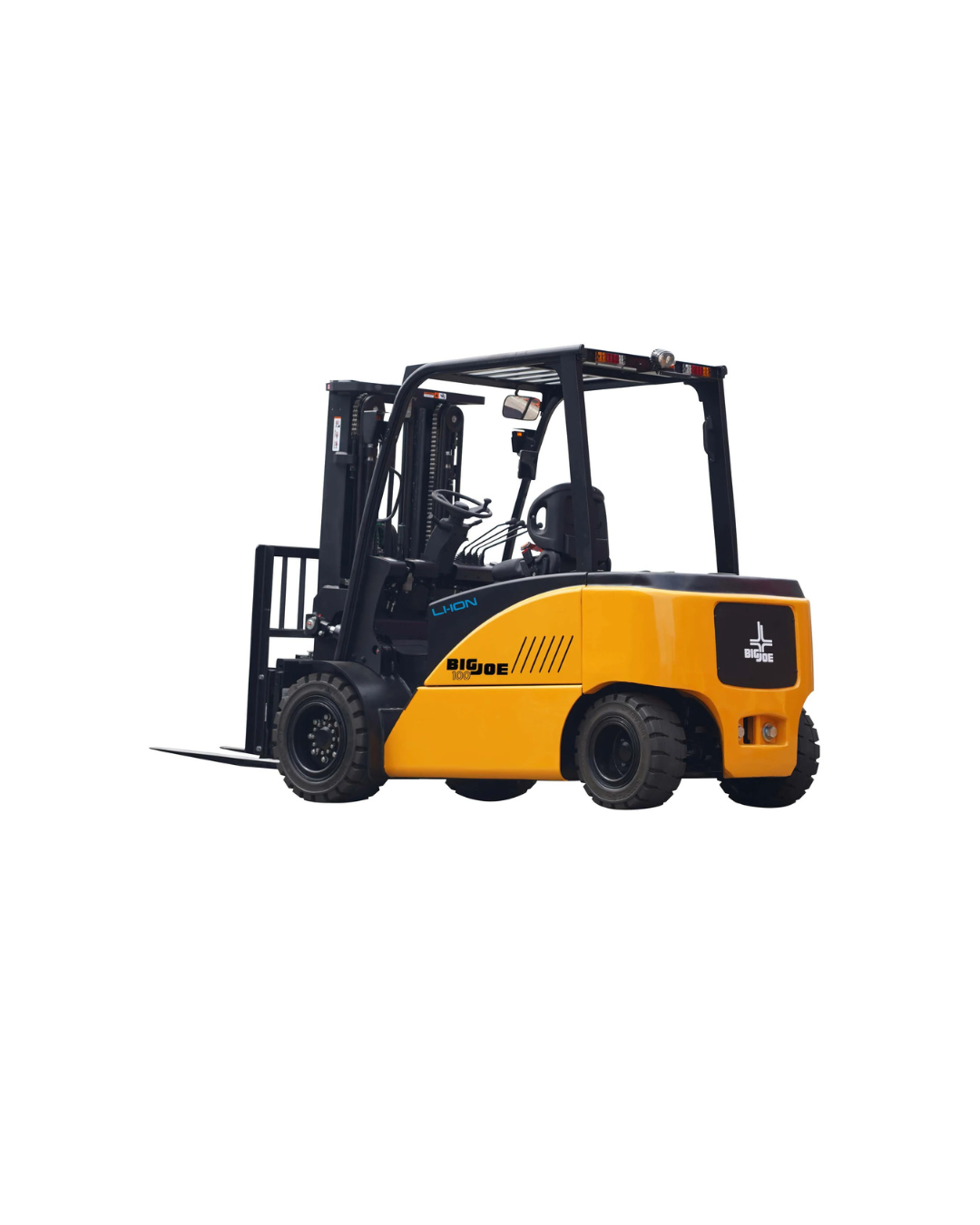

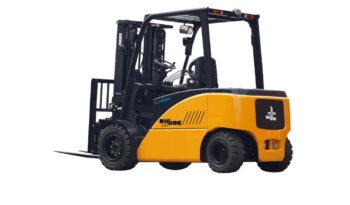

LPE80-100

The Big Joe LPE80-100 series forklifts are designed for various applications, including:

  • Warehousing and distribution

  • Manufacturing

  • Retail

  • Food and beverage

These forklifts offer a cleaner, quieter, and more cost-effective solution for handling heavy loads in diverse industrial environments.





BrandsBIG JOE
DriveSeating
Capacity10,000 lbs, 8,000 lbs
Fuel typeElectric
ModelLPE100, LPE80
Financing calculator
Vehicle price ($)
Interest rate (%)
Period (month)
Down Payment ($)
Calculate
Monthly Payment
Total Interest Payment
Total Amount to Pay

FEATURES

  • Load Capacity: 8,000 lbs (LPE80) / 10,000 lbs (LPE100) at 24-inch load center

  • Battery: Integrated 80V lithium-ion, available in 460Ah or 560Ah capacities

  • Charging: Onboard 120/240VAC charger; optional external 480VAC three-phase charger

  • Drive System: Single brushless AC drive motor with regenerative braking

  • Hydraulics: 80V AC hydraulic pump motor with proportional control

  • Tires: Solid pneumatic-shaped for stability and smooth ride

  • Speed: Maximum travel speed of 9.0 mph (empty) / 8.7 mph (loaded)

  • Lift Speed: Maximum lift speed of 88.5 ft/min

  • Turning Radius: 107.7 inches (LPE80) / 109 inches (LPE100)

  • Dimensions: Overall width of 61.0 inches; overhead guard height of 92.6 inches

  • Fork Dimensions: Standard 48 inches; optional 42 and 60 inches

  • Operator Comfort: Adjustable suspension seat with armrests, ergonomic controls, and low dash for excellent visibility

  • Safety Features: Foot-activated parking brake, rear grab bar with horn, rear blue light, and curve control speed reduction

  • Technology: Bluetooth-enabled LCD display for diagnostics and tuning, over-the-air telematics for maintenance monitoring and GPS tracking

  • Additional Features: Side-shifting fork position with 4-function hydraulics, accessory onboard power/charging, cup holder, and IPX4 rating for water resistance
