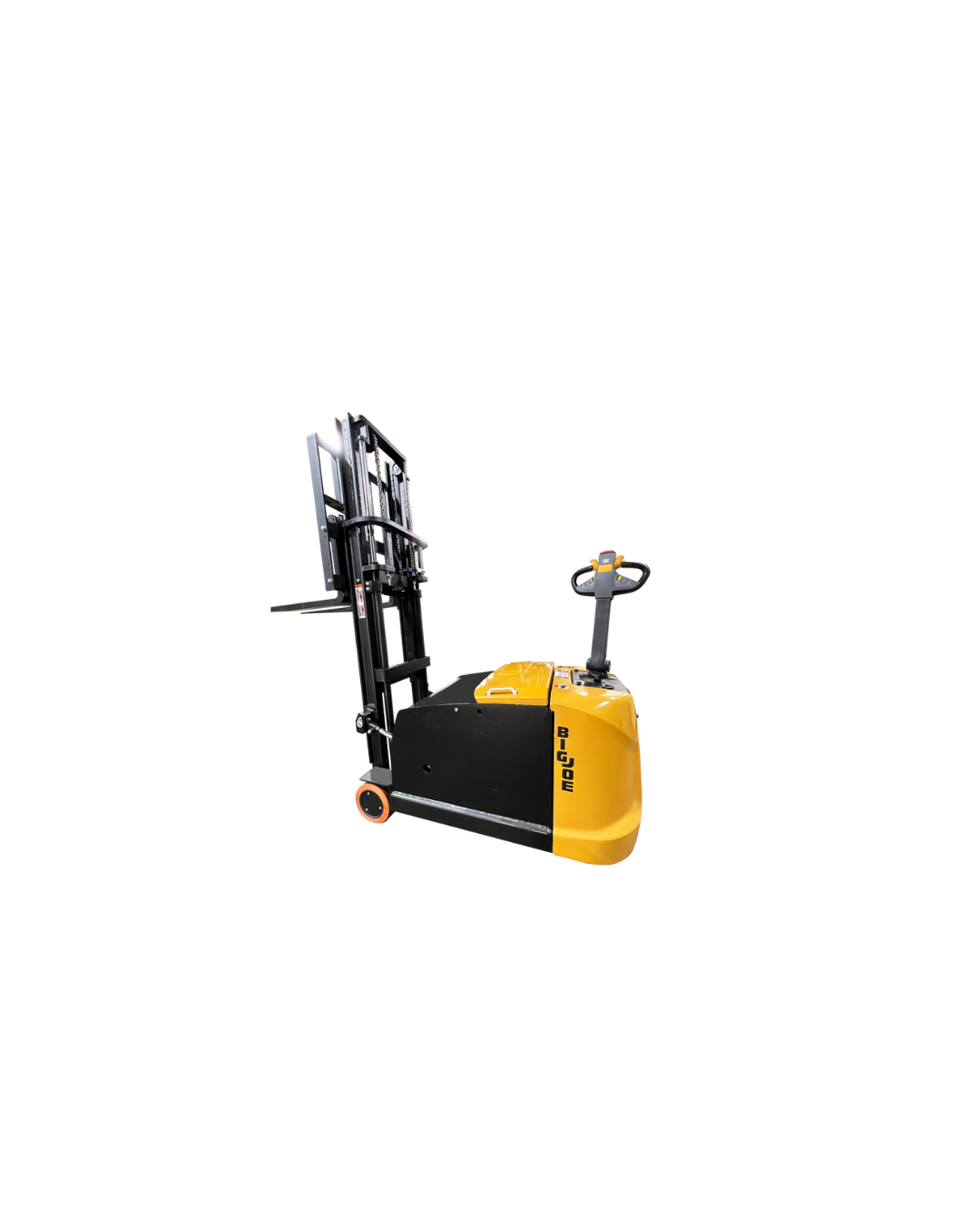

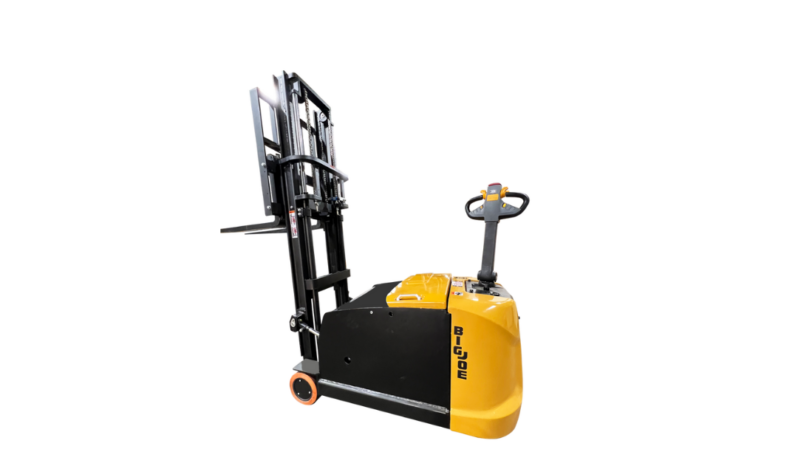

Big Joe CB30/35 Counterbalanced Walkie Stackers

The Big Joe CB30 and CB35 are next-generation counterbalanced walkie stackers designed to offer a compact and cost-effective alternative to traditional sit-down forklifts. With load capacities of 3,000 lbs. (CB30) and 3,500 lbs. (CB35), these stackers combine maneuverability, performance, and versatility, making them ideal for various material handling applications.

Applications

The CB30/35 stackers are well-suited for:

Warehouses
Retail stockrooms
Manufacturing facilities
Distribution centers

Their counterbalanced design allows for easy handling of various pallet sizes and shapes without the constraints of straddle legs, making them suitable for stacking, staging, and transporting pallets in tight areas.

Brands	BIG JOE
Drive	Walkie
Capacity	3,000 lbs, 3,500 lbs
Fuel type	Electric
Model	CB30, CB35

Financing calculator

Vehicle price ($)

Interest rate (%)

Period (month)

Down Payment ($)

Calculate

Monthly Payment

Total Interest Payment

Total Amount to Pay

FEATURES

Performance

Key performance specifications include:

Capacity: 3,000 lbs. (CB30) / 3,500 lbs. (CB35) @ 24” load center
Power: 24-volt AC electric with ZAPI controller
Max Lift Height: Masts available up to 157 inches
Collapsed Height: Masts available as low as 72.4 inches
Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick
Battery Capacity: 224AH AGM pack, industrial battery, or UL recognized 205AH lithium battery options
Charger: Integral to pack or external charger available

For detailed specifications, please refer to the official product page: CB30/35 – Big Joe Forklifts

Key Features

Compact Chassis with Cast Rear Counterweight: Enhances maneuverability in tight spaces.
Electric Power Steering: Reduces operator effort and improves control.
High Torque AC Drive Motor: Ensures powerful performance for demanding tasks.
Lift, Lower, and Tilt Buttons in Handle: Allows for precise control and positioning of loads.
Forward and Back Tilt: Enhances load stability and placement accuracy.
High Visibility I-Beam Mast: Offers clear sightlines for improved safety and efficiency.
Battery Discharge Indicator with Hour Meter: Monitors battery status and usage.
ITA Class II Fork Carriage: Ensures compatibility with a wide range of attachments.

These features make the CB30/35 stackers a safe and productive alternative to traditional rider forklifts, especially in environments with pedestrian traffic and short travel distances.
