CB22

Car brochure

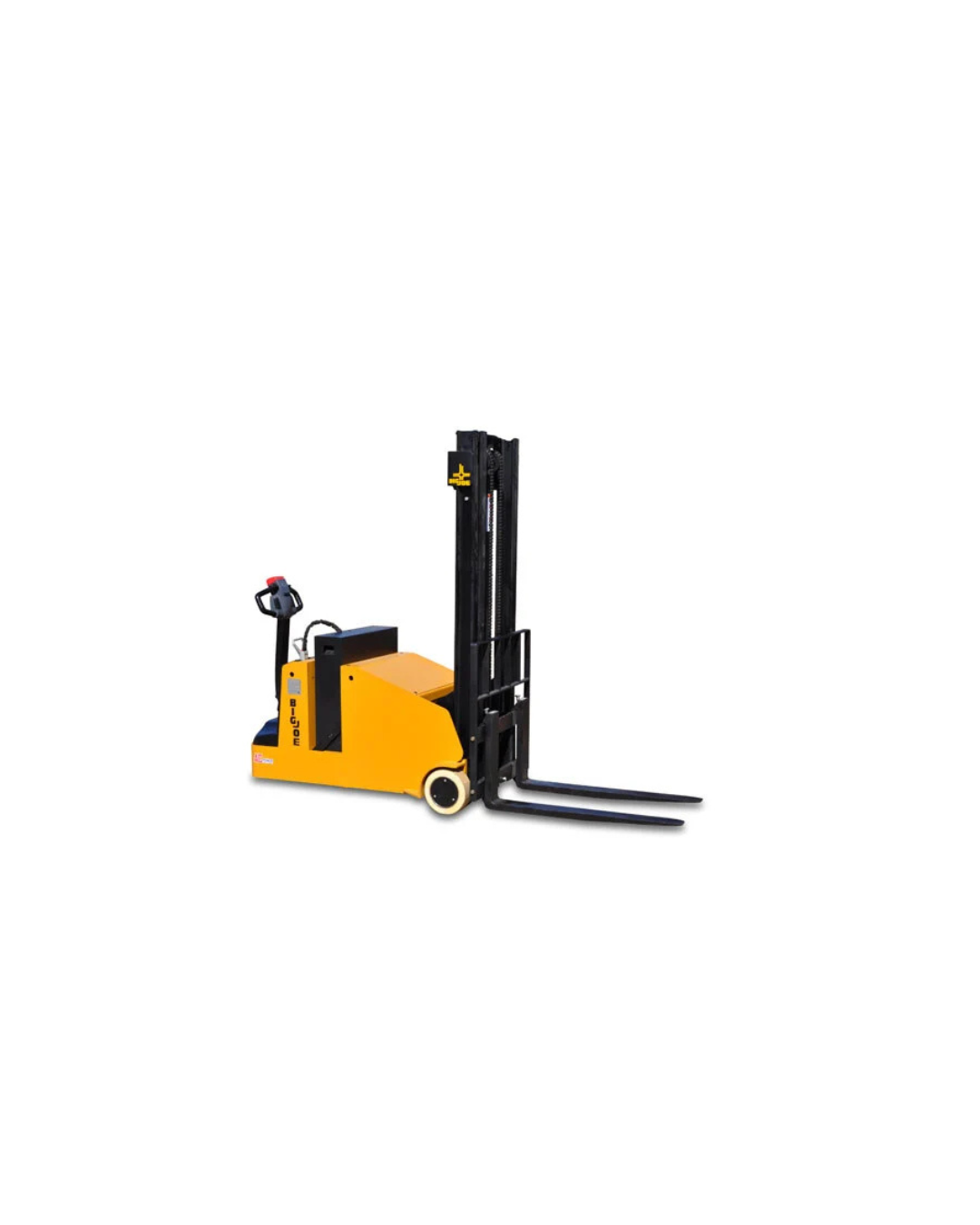

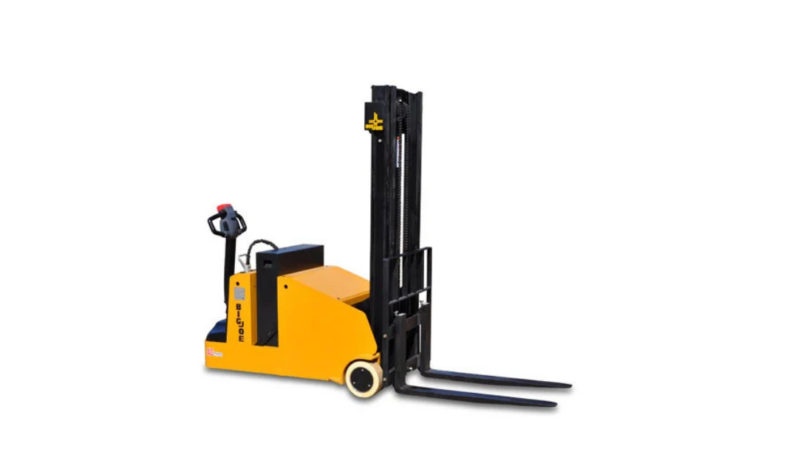

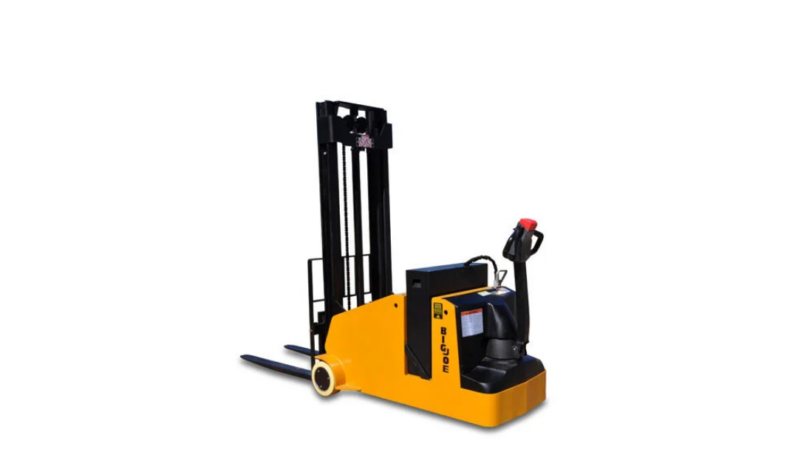

Big Joe CB22 Counterbalanced Walkie Stacker

The Big Joe CB22 is a compact and versatile counterbalanced walkie stacker designed for efficient material handling in various industrial settings. With a 2,200 lb. capacity and a maximum lift height of 157 inches, it offers reliable performance for stacking and transporting pallets, especially in environments where straddle legs may interfere with operations.

Applications

Ideal for environments where space is limited and flexibility is essential, the CB22 stacker is perfect for:

Warehouses
Retail stockrooms
Manufacturing facilities
Distribution centers

Its counterbalanced design allows for easy handling of various pallet sizes and shapes without the constraints of straddle legs, making it suitable for stacking, staging, and transporting pallets in tight areas.

Brands	BIG JOE
Drive	Walkie
Capacity	2,200 lbs
Fuel type	Electric
Model	CB22

Financing calculator

Vehicle price ($)

Interest rate (%)

Period (month)

Down Payment ($)

Calculate

Monthly Payment

Total Interest Payment

Total Amount to Pay

FEATURES

Performance

The CB22 stacker boasts the following performance specifications:

Capacity: 2,200 lbs. @ 24” load center
Power: 24-volt AC electric with ZAPI controller
Max Lift Height: Masts available up to 157 inches
Collapsed Height: Masts available as low as 71 inches
Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick
Battery Capacity: 224AH AGM pack or industrial battery options
Charger: Integral to pack or external charger available

Key Features

24-Volt ZAPI AC Controller: Provides smooth and efficient operation.
High Torque AC Drive Motor: Ensures powerful performance for demanding tasks.
Lift, Lower, and Tilt Buttons in Handle: Allows for precise control and positioning of loads.
Forward and Back Tilt: Enhances load stability and placement accuracy.
High Visibility I-Beam Mast: Offers clear sightlines for improved safety and efficiency.
Base Mounted Tiller: Provides low steering effort, reducing operator fatigue.
Battery Discharge Indicator with Hour Meter: Monitors battery status and usage.
ITA Class II Fork Carriage: Ensures compatibility with a wide range of attachments.
