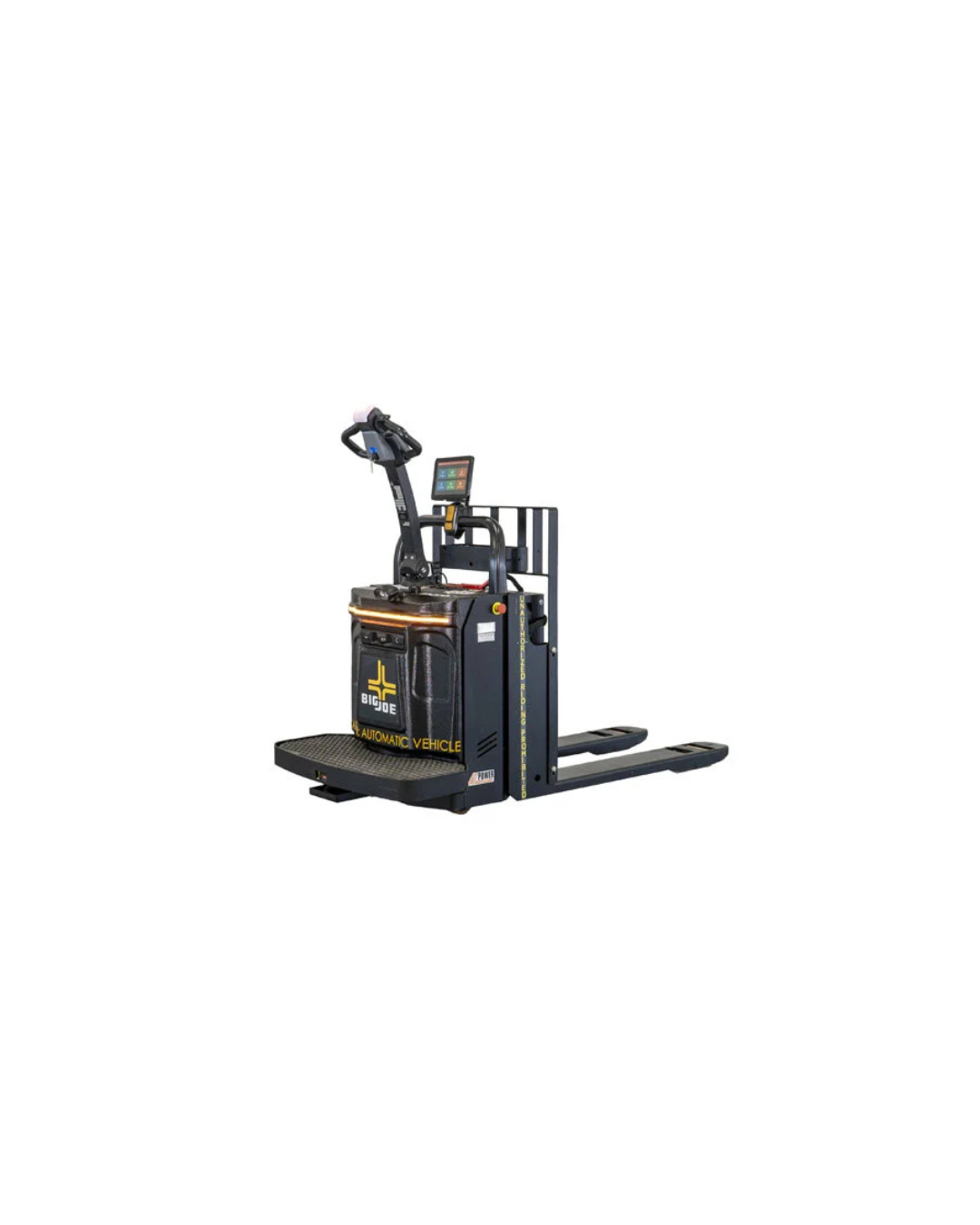

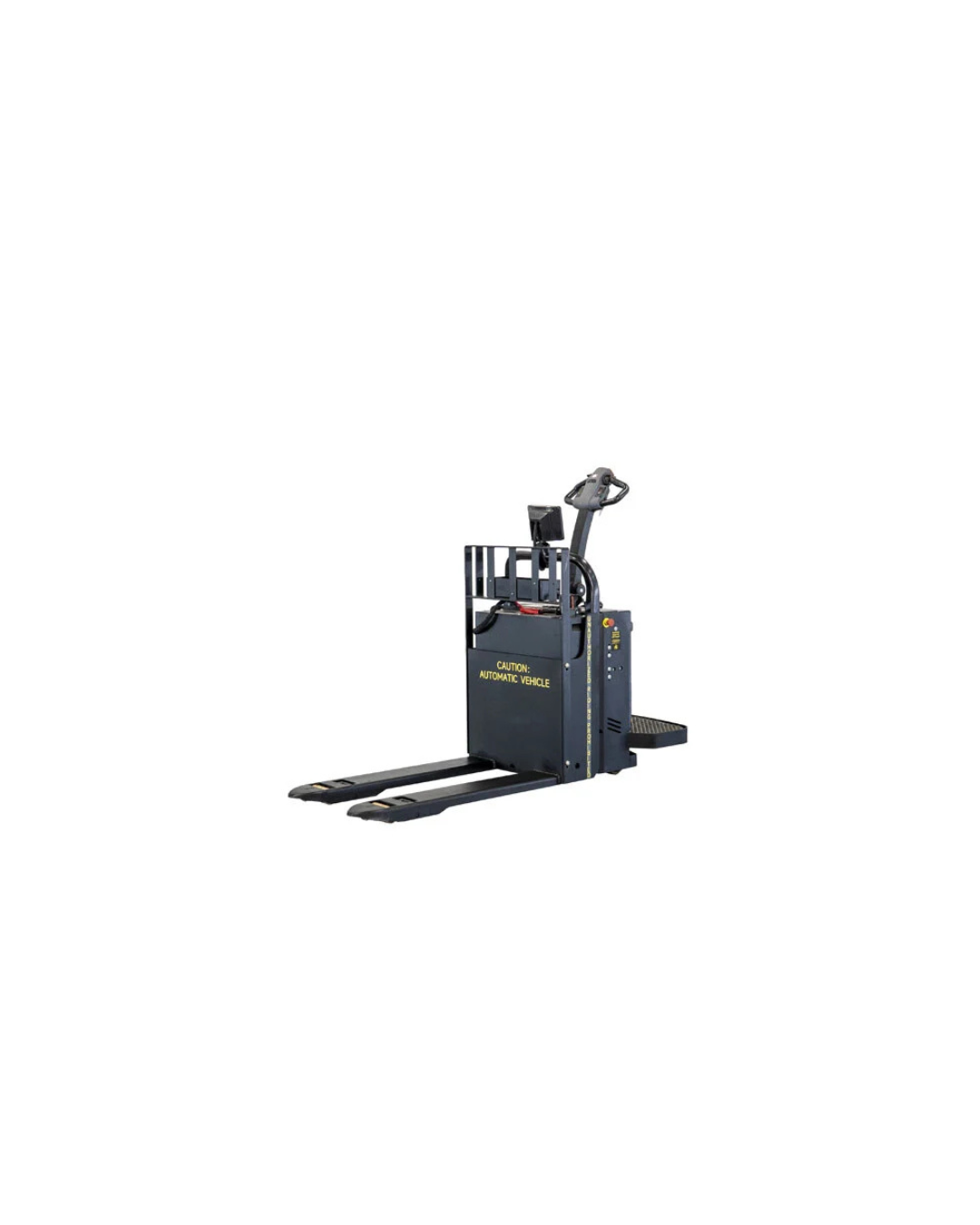

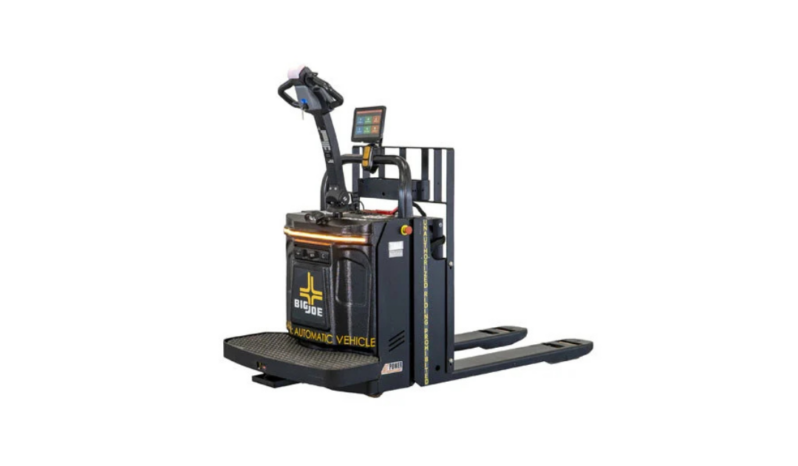

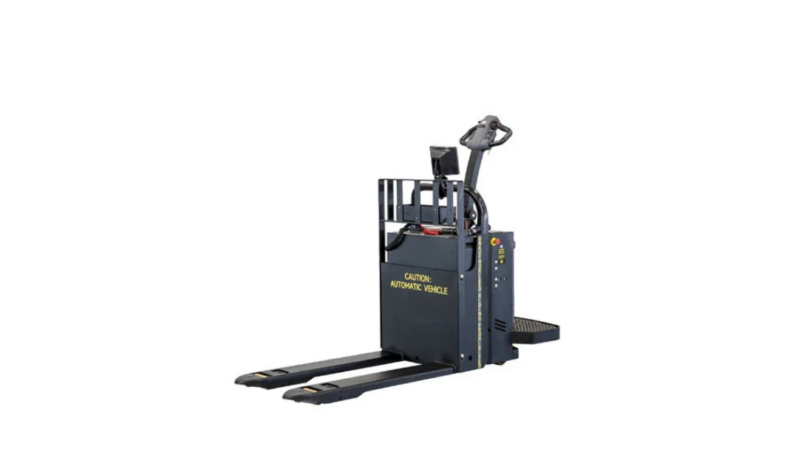

Big Joe AMR Pallet Mover

Overview

The Big Joe AMR Pallet Mover is a user-directed autonomous mobile robot designed to streamline floor-to-floor pallet transportation. Developed in partnership with Thoro.ai, this innovative solution offers an intuitive interface, allowing operators to set up and initiate missions in less than an hour, without the need for extensive infrastructure or specialized training.

Ideal for environments where repetitive pallet movement is common, the AMR Pallet Mover is perfect for:

Warehouses
Manufacturing facilities
Distribution centers
Retail stockrooms

Its autonomous capabilities free up personnel to focus on more value-added tasks, enhancing overall operational efficiency.

Brands	BIG JOE
Drive	Automation
Capacity	4,400 lbs
Fuel type	Electric
Model	BPM44

Financing calculator

Vehicle price ($)

Interest rate (%)

Period (month)

Down Payment ($)

Calculate

Monthly Payment

Total Interest Payment

Total Amount to Pay

FEATURES

Performance

Key performance specifications include:

Capacity: 4,400 lbs. @ 24” load center
Power: UL-recognized 24V 205AH Li-ion battery
Max Lift Height: 7.6 inches
Collapsed Height: 2.99 inches
Fork Dimensions: 27″ x 47.25″
Autonomous Travel Speed: Up to 2.8 MPH
Battery Charger: Onboard 120VAC charger

The AMR can operate continuously for up to 10 hours and supports opportunity charging, gaining approximately 1% charge every six minutes.

Intuitive Touchscreen Interface: Simplifies mission setup and execution.
Advanced Navigation Sensors: Includes a stereoscopic camera and 270-degree forward-facing LiDAR for precise navigation and obstacle avoidance.
Dynamic Mapping: Allows the AMR to update facility maps on-the-fly, adapting to changing environments.
Map Sharing: Enables multiple units to share updated maps via Wi-Fi, ensuring synchronized operations across a fleet.
Zone Drop Functionality: Facilitates intelligent pallet placement in predefined areas based on availability.
Compact Rider Platform: Offers flexibility for manual operation when needed.
Visual and Audible Alerts: Equipped with a control head beacon and blue light for enhanced safety.
