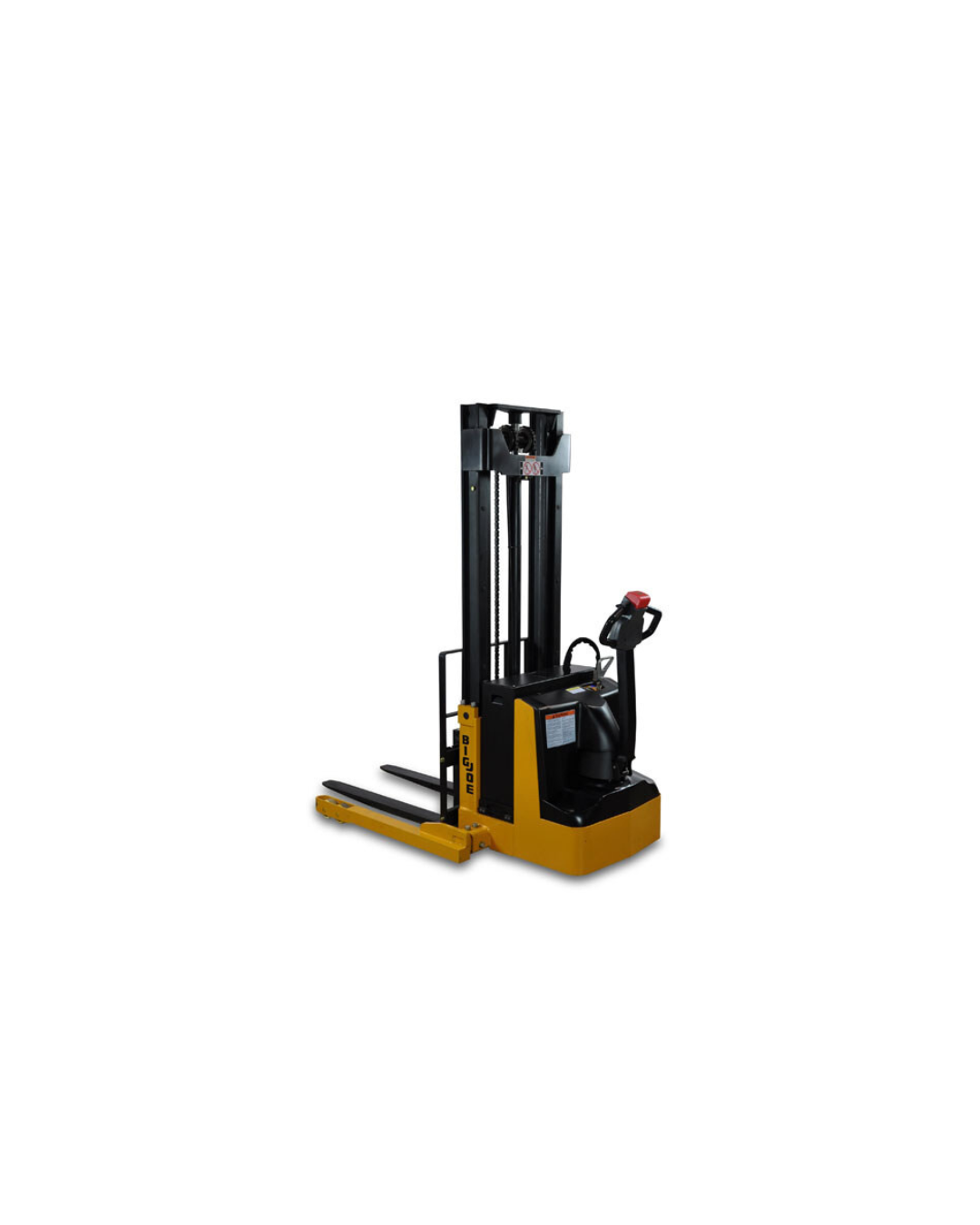

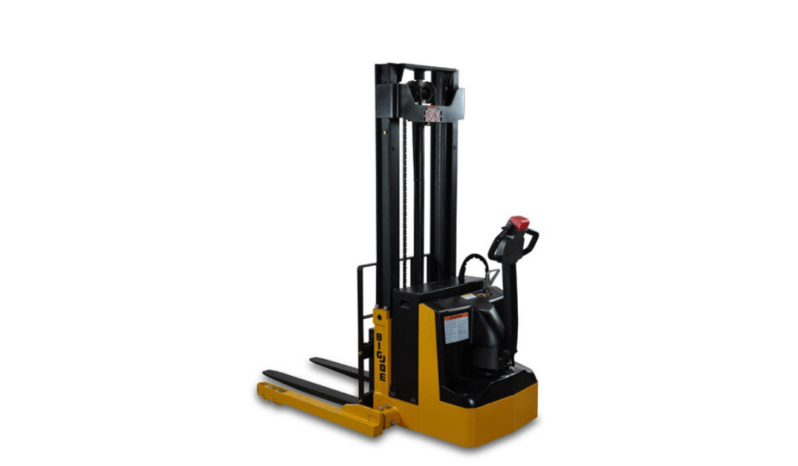

The Big Joe PDS25 is a robust walkie straddle stacker designed for efficient material handling in various industrial settings. With a 2,500 lb. capacity and a maximum lift height of 157 inches, it offers reliable performance for stacking and transporting pallets.
Ideal for environments where space is limited, the PDS25 stacker is perfect for:
Warehouses
Retail stockrooms
Manufacturing facilities
Distribution centers
| Brands | BIG JOE |
| Drive | Walkie |
| Capacity | 2,500 lbs |
| Fuel type | Electric |
| Model | PDS25 |
The PDS25 stacker boasts the following performance specifications:
Capacity: 2,500 lbs. @ 24” load center
Power: 24-volt AC electric with ZAPI transistor control-inverter
Max Lift Height: Masts available up to 157 inches
Collapsed Height: Masts available as low as 71 inches
Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick
Vehicle Dimensions: 64.5″ Overall Length x 44″ Overall Width
Turning Radius: 60.7 inches
Travel Speed: Programmable with optional handset (0-3.7 mph empty / 0-2.9 mph loaded)
Battery Compartment: 26.37” x 9.06” x OPEN
Battery Capacity: 224AH maintenance-free battery pack
Charger: Integral to pack, 110v plug-in
24-Volt ZAPI Transistor Control: Provides smooth and efficient operation.
High Torque AC Drive Motor: Ensures powerful performance for demanding tasks.
Double Reduction Helical ZF GK10 Transmission: Offers durability and reliability.
Shaft Mounted Electromechanical Brake: Enhances safety during operation.
Creep Speed Operation: Allows for precise maneuvering in tight spaces.
Ergonomic Handle: Equipped with a safety reversing switch and horn for operator comfort and safety.
Battery Discharge Indicator with Hour Meter: Provides real-time battery status.
Key Switch Access Control: Limits usage to authorized personnel.
